35mm Gelijkstroom de Servostepper Absolute Codeur van de Motor Holle Schacht

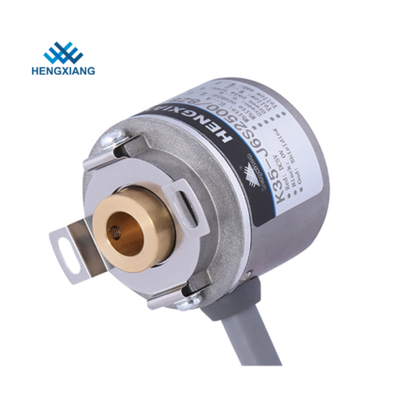

Cheap price encoder 35mm dc servo stepper motor encoder with hole shaft


Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 35mm
Thickness 35mm
Installation dimension 40mm(spring plate 35T40); 29mm(35T29)
Hollow shaft type blind hole
Hollow shaft diameter 6mm,8mm;10mm (Depth 15mm)
Resolution 50;60;100;200;250;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500;4096;5000
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2000/4;2000/6;2000/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V & DC8--30V
Outlettype Cable out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP50
Cable length 500mm
Consumption current 120mA MAX
Top response frenquency 300KHZ
Allowable ripple 35mm Gelijkstroom de Servostepper Absolute Codeur van de Motor Holle Schacht 0≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5.9x 10-3 N.m
Intertia moment less than 1x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Top REV 5000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+85°;storage:-25 ~+90°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material Dia cast aluminium
Certification CE
package Carton box
Net weight About 100g (with package)
